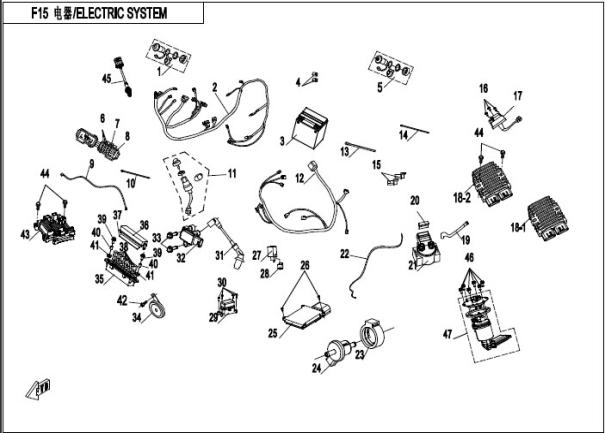

1. POWER SOCKET | CF450K-15-1
2. MAIN CABLE | CF450K-15-2
3. BATTERY | BAT-YTX30
4. PLUG, PDA | CF450K-15-4
5. USB POWER SOCKET | CF450K-15-5
6. FUSE, 15A | CF450K-15-6
7. FUSE, 10A | CF450K-15-7
8. FUSE, 5A | CF450K-15-8
9. NEGATIVE CABLE, BATERY | CF450K-15-9
10. TIE BAND | CF450K-15-10
11. LOCK KITS | CF450K-15-11
12. AUXILIARY CABLE, EFI | CF450K-15-12
13. CABLE CLIP | CF450K-15-13
14. TIE BAND | CF450K-15-14
15. DOIDE, STARTER | CF450K-15-15
16. SCREW M5x30 | CF450K-15-16
17. POWER SOCKET, TRAILER | X8K-15-01-32
18-1. REGULATOR EPS | CF550K-15-2-18
18-2. REGULATOR | X7K-21-02-26
19. POSITIVE CABLE, BATTERY | CF450K-15-19
20. CHIP-TYPE FUSE (30A) | CF450K-15-20
21. STARTER RELAY | CF550K-15-2-21
22. POSITIVE CABLE, STARTER MOTOR | CF450K-15-22
23. IDEL VALVE RUBBER CAP | CF450K-15-23
24. AIR BY-PASS VALVE | CF450K-15-24
26. SCREW | CF450K-15-26
27. FLASHER | CF450K-15-27
28. FLASHER CUSHION | CF450K-15-28
29. CONTROL UNIT | CF450K-15-29
30. BOLT M6x20 | CF450K-15-30
31. HIGH-TENSION CABLE | CF450K-15-31
32. IGNITION COIL | X7M-27-09
33. BOLT M6x25 | CF450K-15-33
34. ELECTRIC HORN | CF450K-15-34
35. RELAY BOX | X8K-15-01-06
36. COVER, RELAY BOX | X8K-15-01-30
37. RUBBER MAT, RELAY BOX COVER | CF450K-15-37
38. AUXILIARY RELAY | CF500K-20-14
39. BOLT M3x16 | CF450K-15-39
40. BUSHING | CF450K-15-40
41. RUBBER COLLAR | CF500M-5-4
42. BOLT M8x14 | CF450K-15-42
43. EPS CONTROLLER | CF550K-10-3-25
44. BOLT M6x30 | CF450K-15-44
45. OXYGEN SENSOR | X7K-18-01-08
46. BOLT M5x14 | CF450K-15-46
47. FUEL PUMP | X7K-17-07
18-2 :
| del | 1, 10, 11, 12, 13, 14, 15, 16, 17, 18-1, 18-2, 19, 2, 20, 21, 22, 23, 24, 26, 27, 28, 29, 3, 30, 31, 32, 33, 34, 35, 36, 37, 38, 39, 4, 40, 41, 42, 43, 44, 45, 46, 47, 5, 6, 7, 8, 9 |
|---|
