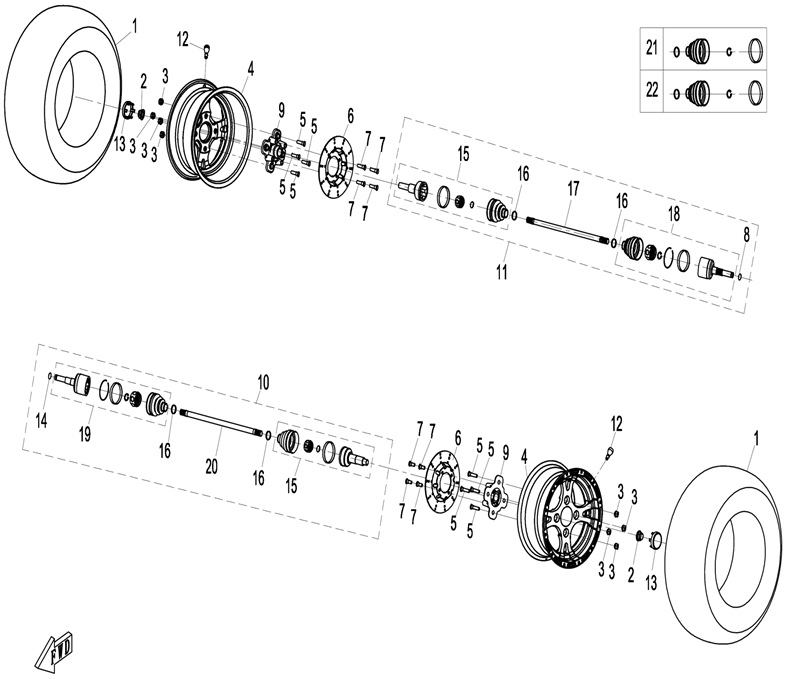

1. FRONT TIRE | X8K-07-01
2. NUT, RIM SHAFT | CF500K-10-2
3. MOUNTING NUT, ALU RIM | CF500K-10-3A
4. FRONT ALUM. RIM | X8K-07-04
4-1. FRONT ALUM. RIM 25TH BLUE | X8K-07-04-1
5. BOLT, FRONT WHEEL HUB | CF500K-10-5
6. FRONT BRAKE DISC | X8K-07-06
7. BOLT, FRONT BRAKE DISC | CF500K-10-7
8. WIRE CIRCLIP | CF500K-10-21
9. HUB FRONT WHEEL | X5K-14-23
10. CONSTANT VELOCITY DRIVE SHAFT, LH 24mm | CF500K-10-24-1
11. CONSTANT VELOCITY DRIVE SHAFT, RH | CF500K-10-25
11-1. FRONT DRIVE SHAFT, RH 24mm | CF500K-10-25-1
12. INFLATION VALVE | CF500K-10-26
13. ALUM. RIM CAP | X8K-07-13
13-1. ALUM. RIM CAP 25TH | X8K-07-13-1
17. FRONT SHAFT, RH | CF500K-10-14
3. MOUNTING NUT, ALU RIM | CF500K-10-3A :
| del | 1, 10, 11, 11-1, 12, 13, 13-1, 17, 2, 2-2, 3, 4, 4-1, 5, 6, 6-2, 7, 8, 8-2, 9 |
|---|
