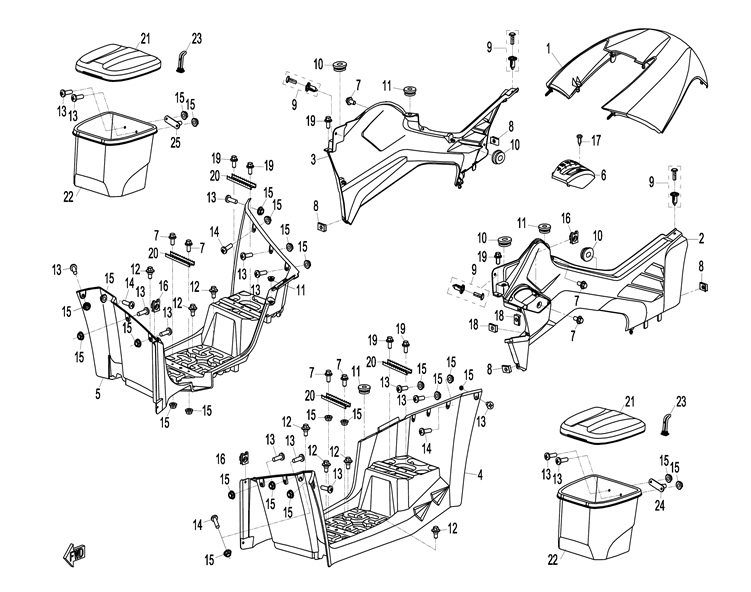

1. COVER AIR FILTER, ORANGE | X8K-04-02-01-01
1-1. COVER AIR FILTER, GREY | X8K-04-02-01-03
1-2. COVER AIR FILTER, WHITE | X8K-04-02-01-04
1-3. COVER AIR FILTER, BLUE | X8K-04-02-01-05
1-4. COVER AIR FILTER, CAMO | X8K-04-02-01-02
2. LEFT SIDE PANEL, ORANGE | X8K-04-02-02-01
2-1. LEFT SIDE PANEL, GREY | X8K-04-02-02-03
2-2. LEFT SIDE PANEL, WHITE | X8K-04-02-02-04
2-3. LEFT SIDE PANEL, BLUE | X8K-04-02-02-05
2-4. LEFT SIDE PANEL, CAMO | X8K-04-02-02-02
3. RIGHT SIDE PANEL, ORANGE | X8K-04-02-03-01
3-1. RIGHT SIDE PANEL, GREY | X8K-04-02-03-03
3-2. RIGHT SIDE PANEL WHITE | X8K-04-02-03-04
3-3. RIGHT SIDE PANEL, BLUE | X8K-04-02-03-05
3-4. RIGHT SIDE PANEL, CAMO | X8K-04-02-03-02
4. FOOTREST BOARD, LH | X8K-04-02-04
5. FOOTREST BOARD, RH | X8K-04-02-05
6. INDICATOR COVER, GEARSHIFT | X8K-04-02-06
7. BOLT M6x12 | CF500K-5-3
9. PUSH RIVET | 9060-040310
10. FIXING RUBBER BUSH | X8K-04-02-10
11. RUBBER COLLAR | CF500M-5-4
13. BOLT M6x16 | CF500K-5-20
15. NUT M6 | CF500EDK-01-24
16. CLAMP, NUT M6 | CF500K-5-9
17. BOLT | X8K-04-02-17
18. CLAMP ST4.2 | CF500K-5-11
19. BOLT M6x20 | CF500K-15-4
20. JAG, FOOTREST BOARD | CF500K-7-6
21. COVER, SIDE BOX | X8K-04-02-21
22. SIDE BOX | X8K-04-02-22
23. TIE BAND, SIDE BOX | X8K-04-02-23
24. LEFT BRACKET, SIDE BOX | X8K-04-02-24
25. RIGHT BRACKET, SIDE BOX | X8K-04-02-25
| del | 1, 1-1, 1-2, 1-3, 1-4, 10, 11, 13, 15, 16, 17, 18, 19, 2, 2-1, 2-2, 2-3, 2-4, 20, 21, 22, 23, 24, 25, 3, 3-1, 3-2, 3-3, 3-4, 4, 5, 6, 7, 9 |
|---|
