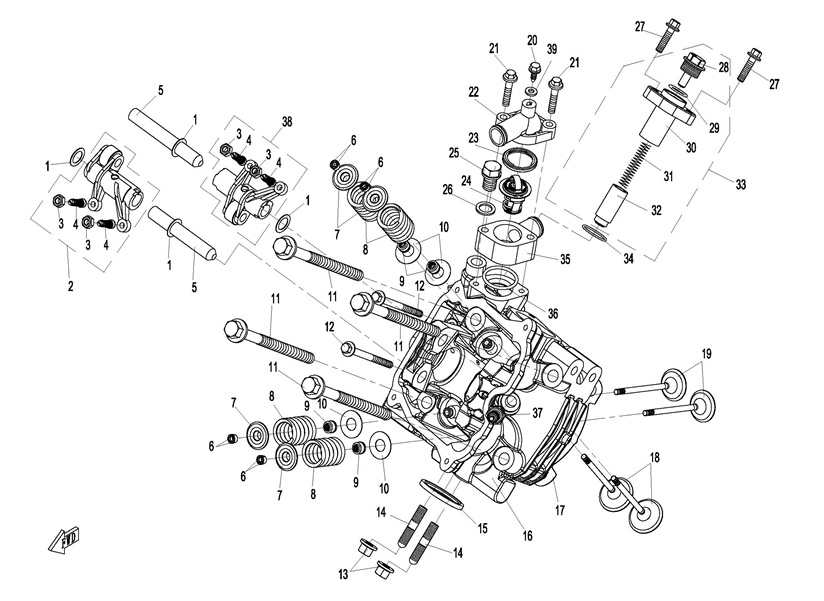

E09 Sylinderhode Nr.1

1. WASHER 12.318.50.5 | X8M-09-01
2. ROCKER ARM, EXHAUST | X8M-09-02
6. LOCK CLIP, VALVE | X8M-09-06
7. UPPER SEAT, VALVE SPRING | X8M-09-07
8. SPRING VALVE | X8M-09-08
9. SEAL, VALVE STEM | CF500M-6-Ch-18
10. LOWER SEAT, VALVE SPRING | X8M-09-10
11. BOLT, CYLINDER | X8M-09-11
13. NUT M8 | CF500M-6-Ch-1
14. STUD M842 | CF500M-6-Ch-28
15. GASKET, EXHAUST PIPE | X8M-09-15
17. GASKET, CYLINDER HEAD | X8M-09-17
18. VALVE, INTAKE | X8M-09-18
19. VALVE, EXHAUST | X8M-09-19
21. BOLT M645 | CF500M-3-24
22. THERMOSTAT COVER | X8M-09-22
23. SEAL RING | CF500M-6-Ch-10
24. THERMOSTAT | X8M-09-24
27. BOLT M625 | CF500M-7-11
28. SCREW PLUG, CHAIN TENSIONER | X8M-09-28
29. O-RING 171.45 | X8M-09-29
33. CHAIN TENSIONER | X8M-09-33
34. SEAL RING, TENSIONER | X8M-09-34
35. SEAT, THERMOSTAT | X8M-09-35
36. O-RING, 282.65 | X8M-09-36
37. SPARK PLUG (DCPR8E) | X8M-09-37
38. ROCKER ARM, INTAKE | X8M-09-38
39. WASHER 5.3111.5 | X8M-09-39
